1.3 Mechanical Design Overview

The WMOi3 integrated modem is encased as shown in the figure here-below. It

includes a WISMO™ module, a 50-pin connector, a SIM holder and a RF connector.

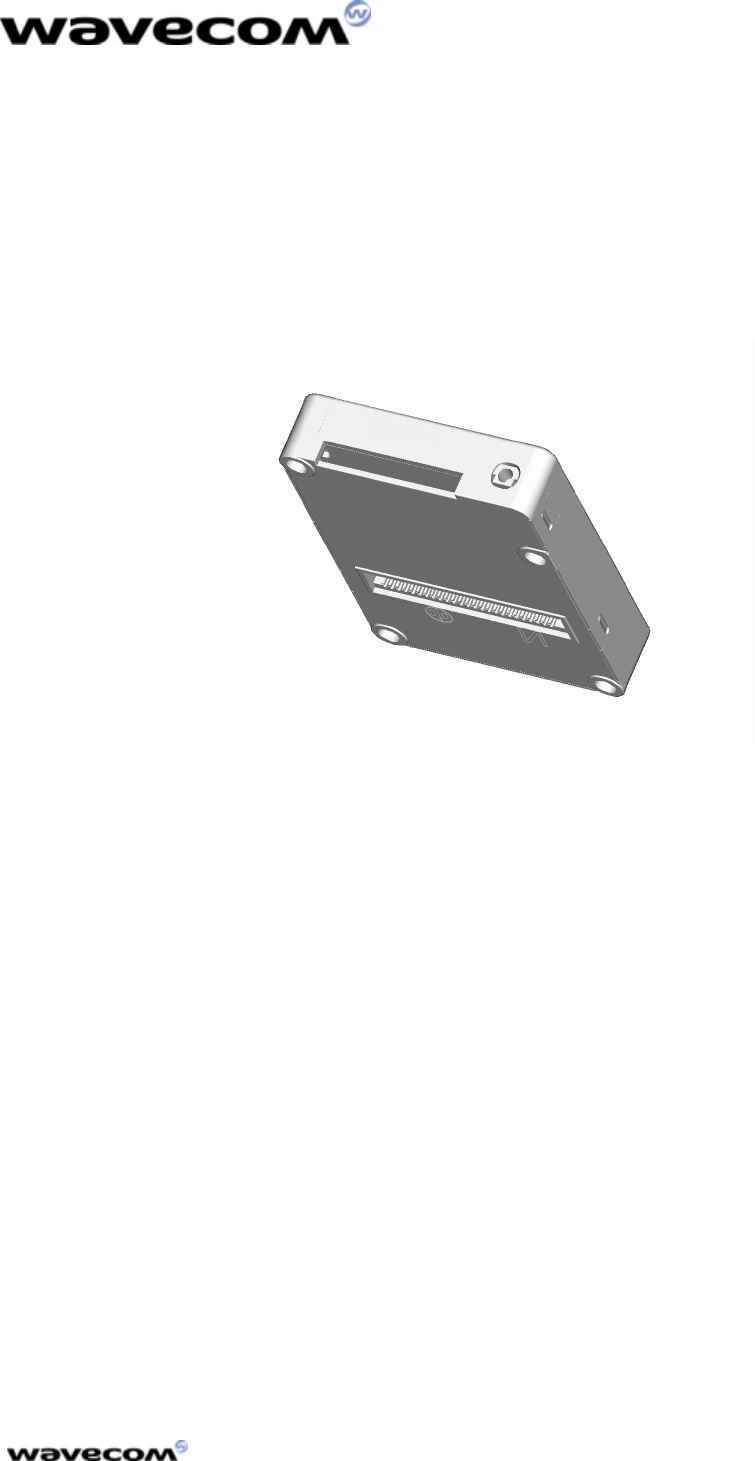

figure 1 : mechanical description
