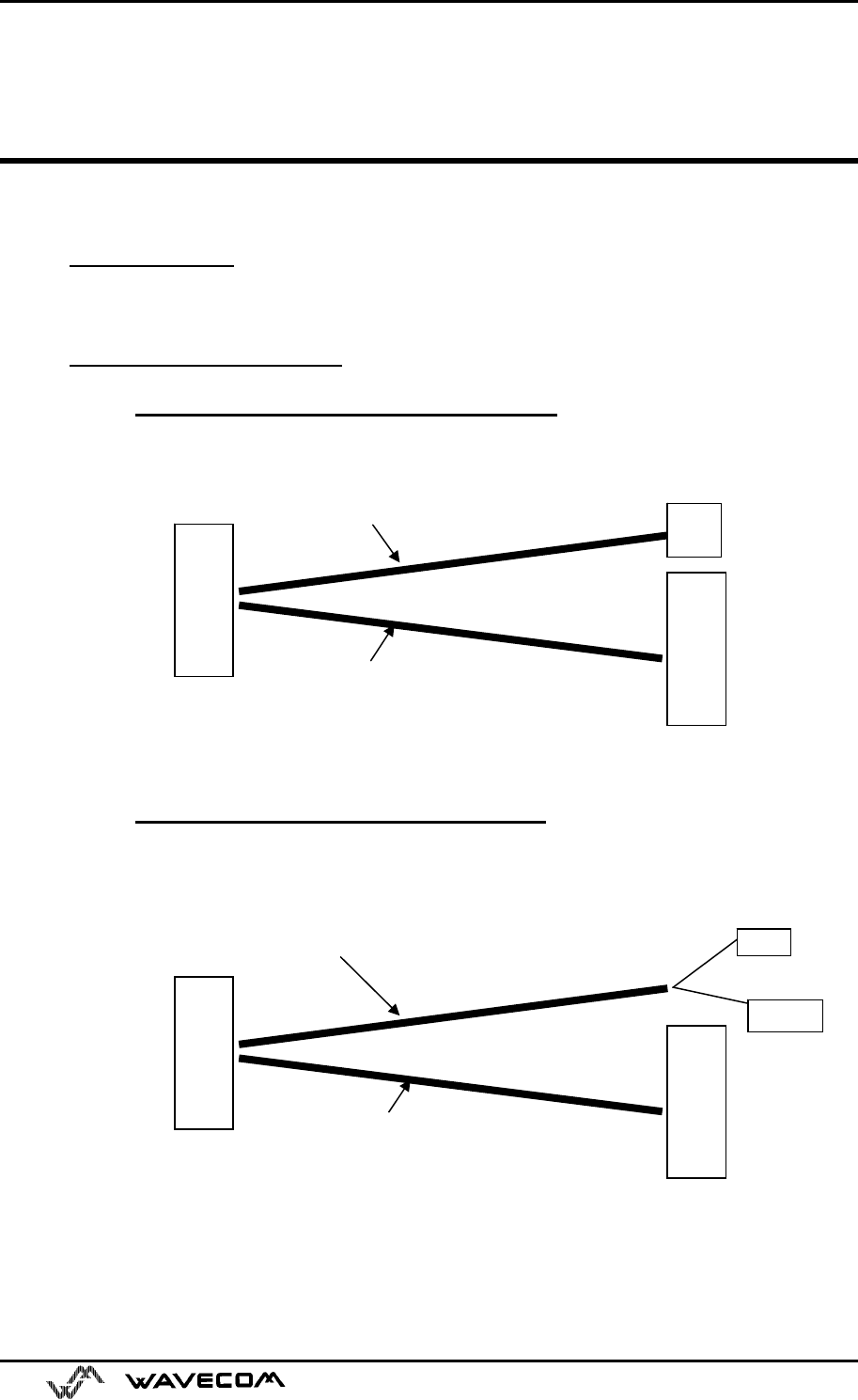

7. Accessories description

7.1. Headset

References of this kit have to be specified.

7.2. Cordon examples

7.2.1. Cordon RS232/AUDIO(head set) :

7.2.2. Cordon RS232/AUDIO(Car Kit) :

Flat cable 4 wires :

Wire constitution : tinned copper 7x0.15 mm (26AWG)

Maximum operating temperature -20°C/+85°C

SUB-D High Density 15

pts mâle + braid o

shield soldered on SUB

D body + cover.

SUB-D 9 pts femelle

+ braid of shield

soldered on SUB D

body + cover.

Modular Jack

4P/4C

Jack audio mono 2,5 mm

female (microphone)

Shielded cable 9 wires + braid of shield :

Wire constitution : tinned copper 7x0.2 mm

Wire constitution : 7x 0.15 ( 26AWG)

Maximum operating temperature: -20°C/+85°C.

Shielded cable 9 wires + braid of shield :

Wire constitution : tinned copper 7x0.2 mm

Wire constitution : 7x 0.15 ( 26AWG)

Maximum operating temperature: -20°C/+85°C.

Cable 2x2 wires :

2 Wires constitution (speaker) : tinned copper 7x0.2 mm (24AWG)

1 conductor with shield (microphone)

Maximum operating temperature -20°C/+85°C

Cable length : 1 m .

phono connector RC

female (speaker)

SUB-D High Density 15

pts mâle + braid o

shield soldered on SUB

D body + cover.

SUB-D 9 pts femelle

+ braid of shield

soldered on SUB D

body + cover.
