15

uPatch130

■ uPatch MP form factor,

19 x 27 x 7 mm

■ single chip LSI based (CXD2985GL)

■ Very high sensitivity:

-141 dBm (Acquisition)

-154 dBm (Navigation)

■ NMEA or iTalk Binary protocol

■ 12 channels

■ 145mW@3,0V

(45uW@ 3,0V in back up state)

■ Internal or external antenna

(autoswitch)

■ Integrated 18x18x4mm patch

antenna

■ 1 PPS output

■ Hirose RF connector for external

antenna

■ 8-pin SMD interface connector

Patch300

■ uPatch MP form factor, 19x27x7 mm

■ SiRFStarIII low power based

(GSC3/LP)

■ Very high sensitivity:

-142 dBm (Acquisition)

-158 dBm (Navigation)

■ 20 channels

(12 in tracking)

■ NMEA protocol

■ 20mW@3,0V

(45uW@ 3,0V in back up state)

■ Internal or external antenna (autoswitch)

■ Integrated 18x18x4mm patch antenna

■ 1 PPS output

■ Hirose RF connector for external

antenna

■ 8-pin SMD interface connector

uPatch102

■ Small form factor – 28 x 28 x 7.4 mm

■ Low power consumption:

44 mA @ 3.3 V (normal mode)

150 uA @ 3.3 V (battery backup)

■ Very high sensitivity:

– 139 dBm (Unaided Acquisition)

– 150 dBm (Navigation)

– 152 dBm (Tracking)

■ NMEA0183 and Sony ASCII protocols

■ Integr. 25 x 25 x 4 mm patch antenna

■ Accurate 1PPS timing output

■ Cold Start TTFF: 38 s

■ Battery backup for low power modes

■ Based on Sony receiver architecture

■ CXD2951-GL4 single chip LSI

■ Two receiver options:

– uPatch102-R (RS232)

– uPatch102-C (CMOS)

■ Default NMEA messages @ baud rates:

– 4800: GGA, GSA, GSV, RMC

– 9600: GA, GSA, GSV, VTG, ZDA,

PSGSA

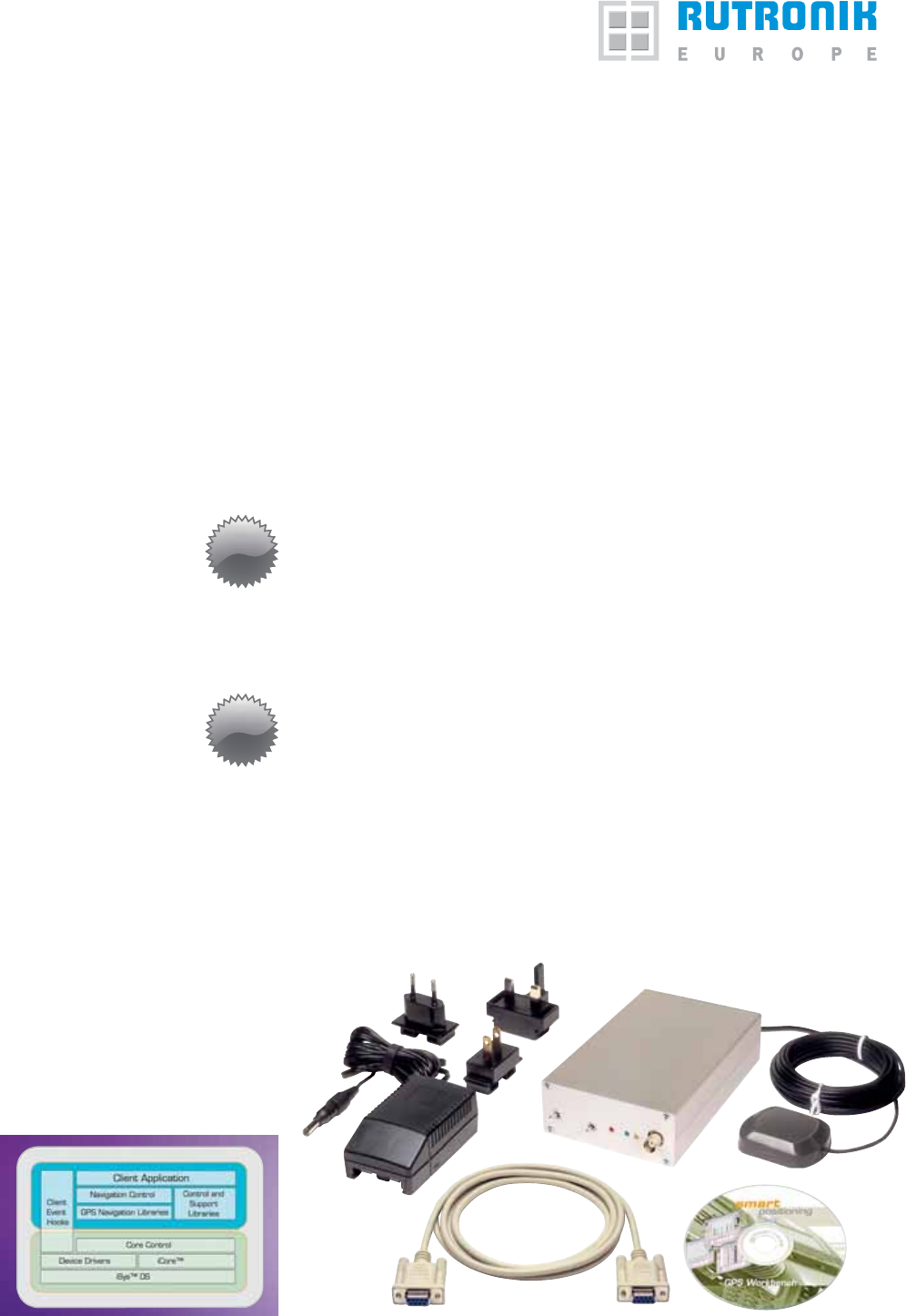

Developers Kit

iTrax03 family · iTrax100 family · iSuite/SDK

PRE-

LIMINARY

PRE-

LIMINARY
