Wireless LAN

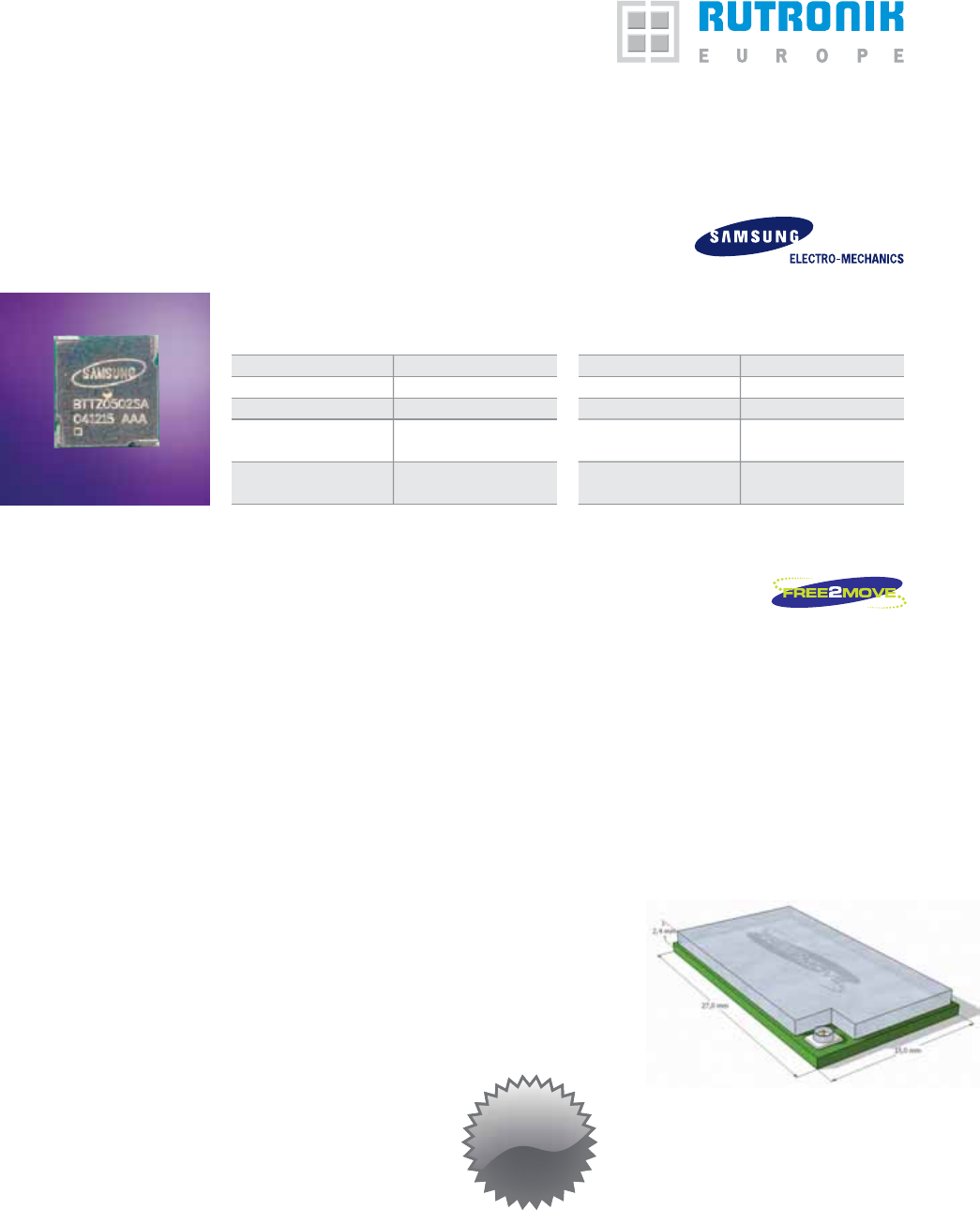

Wireless LAN module supporting 802.11b/g

This module is an 802.11b/g device; surface mountable in an

automatic mounting line or manually for prototyping. The module

supports data rates of up to 56 Mbps (802.11g). The host

processor is connected via an SDIO or SPI interface. The module

radio characteristics make it suitable in applications where

long range is important. The module form factor and antenna

connector gives freedom in antenna placement for enhanced

performance.

A development kit is made available to customers including a

set of modules and support for porting the drivers to a number

of platforms.

Features

■

Dual-mode IEEE 802.11b/g module

■ SDIO and SPI host interface

■ Low power operation

■ Support for IEEE 802.11e EDCA QoS

■ Full support for WEP40/64 and WEP104/128;

WPA/WPA2 (802.11i) enhanced encryption modes

■ Bluetooth Wi-Fi cellular coexistence support

via priority and channel signaling schemes

■ Support data rates up to 56 Mbps

■ Antenna connected via UFL connector on the module

■ Receiver Sensitivity -80dBm (estimated)

■ Output power 20 dBm

(estimated)

■ Low power modes

■ Surface mountable

■ RoHS compliant

soon

available

Bluetooth Specification

V1.2 Class 2 (1.0 dBm)

Bluetooth™ Modules – partly qualified (component)

Bluetooth Specification

V2.0 + EDR Class 2 (1.0 dBm)

Think Wireless!

Chipset CSR BC03

Part number

BTTZ0502SA

Size 6.0 x 6.4 x 1.4 mm

Interface UART, PCM

HCI or RFCOMM

Clock Ref Clk (26 MHz) Integrated

Slow (32,768 kHz) Integrated

Chipset CSR BC04

Part number

BTTM46C2SA

Size 6.4 x 5.3 x 1.3 mm

Interface UART, PCM

HCI Stack

Clock Ref Clk (26 MHz) Integrated

Slow (32,768 kHz) Integrated
