Function Part number Frequency P out Data rate Supply voltage Temperature Other

(MHz) (dBm) (kbps) (V) (°C) features

Transmitter TDK5100 433–435/868–870 5/2 20 2.1…4.0 –40…+125 Low power

TDK5100F 433–435 5 20 2.1…4.0 –40…+125 10 pin

TDK5110 433–435 10 20 2.1…4.0 –40…+125 Low power

TDK5110F 433–435 10 20 2.1…4.0 –40…+125 10 pin

TDK5116F 866-870 MHz 10 20 2.1…4.0 -40...+125 Low Power

Receiver TDA5200 433–435/868–870 – 4 5 –40…+125 Low power

TDK5210 400–440/810–870 100 5 –40…+125 Low power

TDA5220 400–440/810–870 – 4 5 –40…+125 Low power

TDA5230 300-320/433-450/ – 20 3

…

5.5 –40...+105 SmartLEWIS

865-870

TDA5250 868–870 13 64 2.1…5.0 –40…+125 Low power

Transceiver TDA5255 433–435 13 100 2.1…5.0 –40…+125 Low power

Function Part number Frequency P out Data rate Supply voltage Temperature Other

(MHz) (dBm) (kbps) (V) (°C) features

Receiver rfRXD0420 300–450 – 80 2.5…5.5 –40…+85

rfRXD0920 800–930 – 80 2.5…5.5 –40…+85

Function Part number Frequency P out Data rate Supply voltage Temperature Program Memory

(MHz) (dBm) (kbps) (V) (°C) bytes

MCU/Transmitter rfPIC12F675F 380–450 10 40 2.0…5.5 –40…+125 1792

rfPIC12F675H 850–930 10 40 2.0…5.5 –40…+125 1792

Development/Evaluation kits are available for all products.

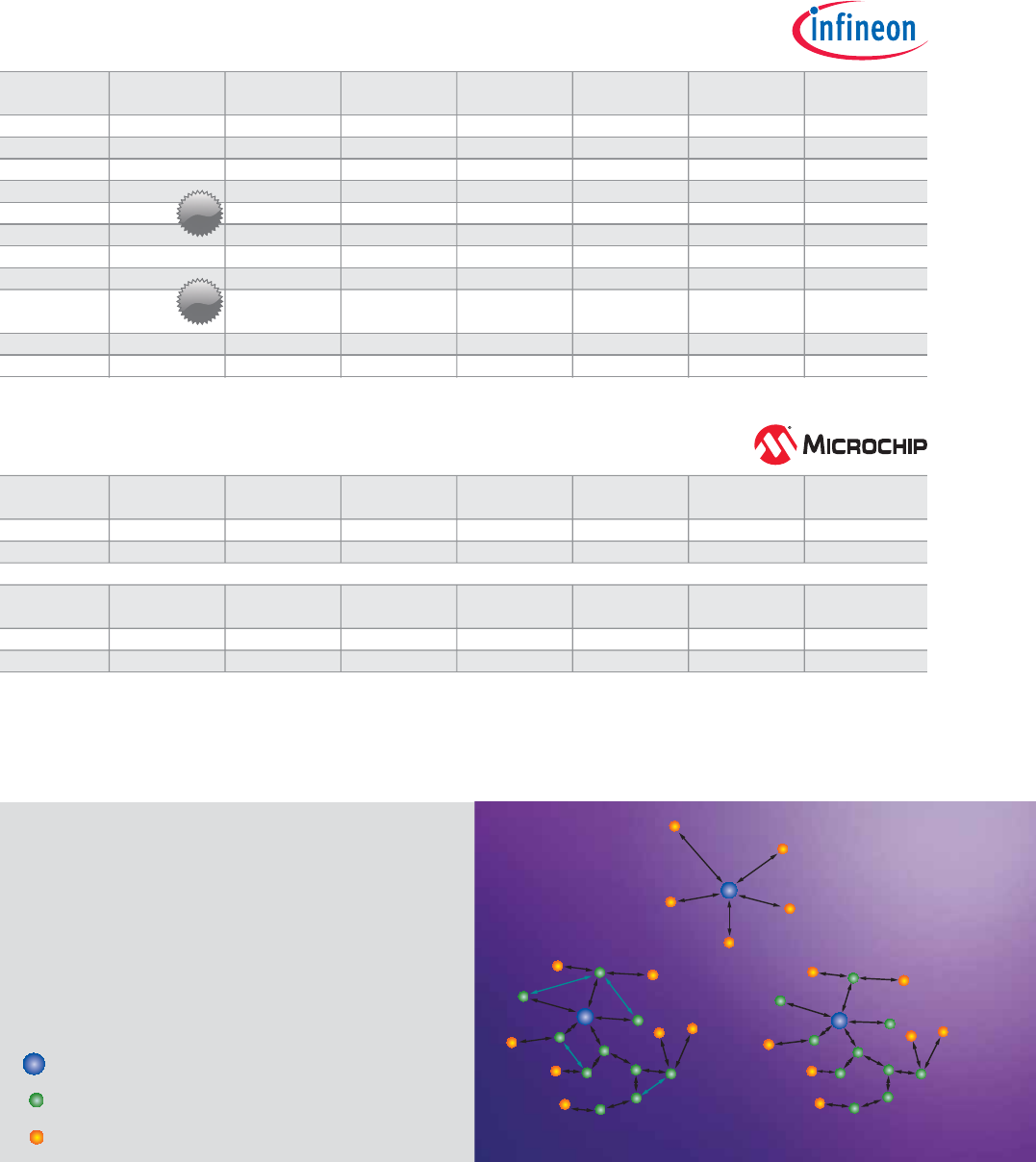

ISM/SRD

ZigBee™

■

Star

networks support a single ZigBee™ coordinator with

one or more ZigBee™ End Devices (up to 65,536 in theory)

■

Cluster tree

networks provide for a beaconing multi-hop network

– Permits battery management of coordinator and routers

– Must tolerate high latency due to beacon collision avoidance

■

Mesh

network routing permits path formation from any

source device to any destination device

– Radio receivers on coordinator and routers must be on

at all times

Cluster tree

Star network

Mesh network

ZigBee™ Coordinator (Controller)

ZigBee™ Full Function Device (Router)

ZigBee™ Reduced Function Device (End Device)

NEW
