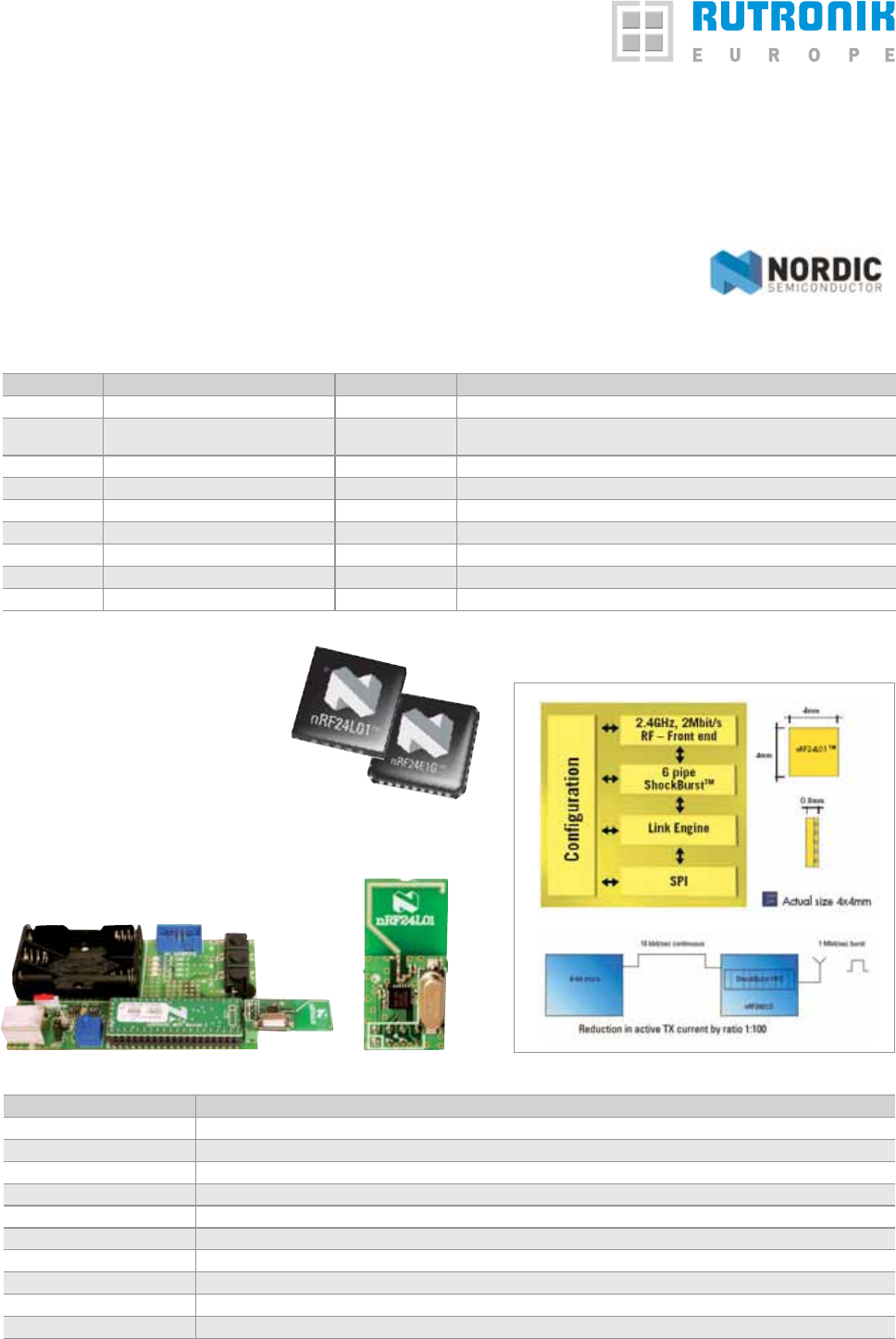

Few external components gives low system cost and small size

ISM/SRD

Part number Description Package Physical peripherals

nRF24L01 2.4GHz Transceiver QFN20 (4x4mm) Enhanced ShockBurst, MultiCeiver, Link Layer Protocol.

nRF24AP1 2.4GHz Transceiver with protocol QFN24 (5x5mm) Embedded ANT protocol for personal area networks (PAN), UART or

Synch serial port

nRF24Z1 2.4GHz audio streaming Transceiver QFN36 (6x6mm) I2S, S/PDIF, SPI, QoS engine, 4Mbit/s transceiver

nRF9E5 433/868/915MHz Transceiver QFN32 (5x5mm) 8051 4 ch ADC, ShockBurst, voltage regulators

nRF905 433/868/915MHz Transceiver QFN32 (5x5mm) ShockBurst, voltage regulators

nRF24E1G 2.4 GHz Transceiver QFN36 (6x6mm) 8051MCU, 9 ch ADC, PWM, ShockBurst, Duoceiver, voltage regulators

nRF24E2G 2.4 GHz Transmitter QFN36 (6x6mm) 8051MCU, 9 ch ADC, PWM, ShockBurst, Duoceiver, voltage regulators

nRF2402G 2.4GHz Transmitter QFN16 (4x4mm) ShockBurst

nRF2401AG 2.4GHz Transceiver QFN24 (5x5mm) ShockBurst, Duoceiver

■ FSK or GFSK modulation for efficient

and reliable communication

■ Made for high volume

production

■ Low voltage operation and extensive

power down features

Development Tools

For each part are Evaluation Kit’s available. In all Kit’s is

a full functional system included, so you are able to build at

minimum a point to point wireless Link.

Partnumber Description

nRF24L01-EVKIT 2x carrierboards + 3 nRF24L01 (2 PCB + 1 SMA) modules + 2MCU modules w/USB+CD

nRF24L01-MODULE-PCB 1x nRF24L01 module with PCB antenna

nRF24L01-MODULE-SMA 1x nRF24L01 module with SMA connector

nRF24AP1-EVKIT 2x carrierboards +4x nRF24AP1 modules. + SW

nRF24Z1-EVKIT 2x nRF24Z1 boards + USB config boards + SW + antennas

nRF9E5-EVKIT-433 2x nRF9E5 boards + 2x USB config boards + SW + antenna for 433MHz operation

nRF9E5-EVKIT-868/915 2x nRF9E5 boards + 2x USB config boards + SW + 2 antennas for 868/915MHz operation

nRF905-EVKIT-433 2x nRF905 boards + 2 USB boards + 2 antennas + SW for 433MHz operation

nRF905-EVKIT-868/915 2x nRF905 boards + 2 USB boards + 2 antennas + SW for 868/915MHz operation

nRF24E1-EVKIT 2x nRF24E1 boards + 2x USB config boards + SW + 2 antennas
