RFID

Passive RFID Reader ICs

Package discription

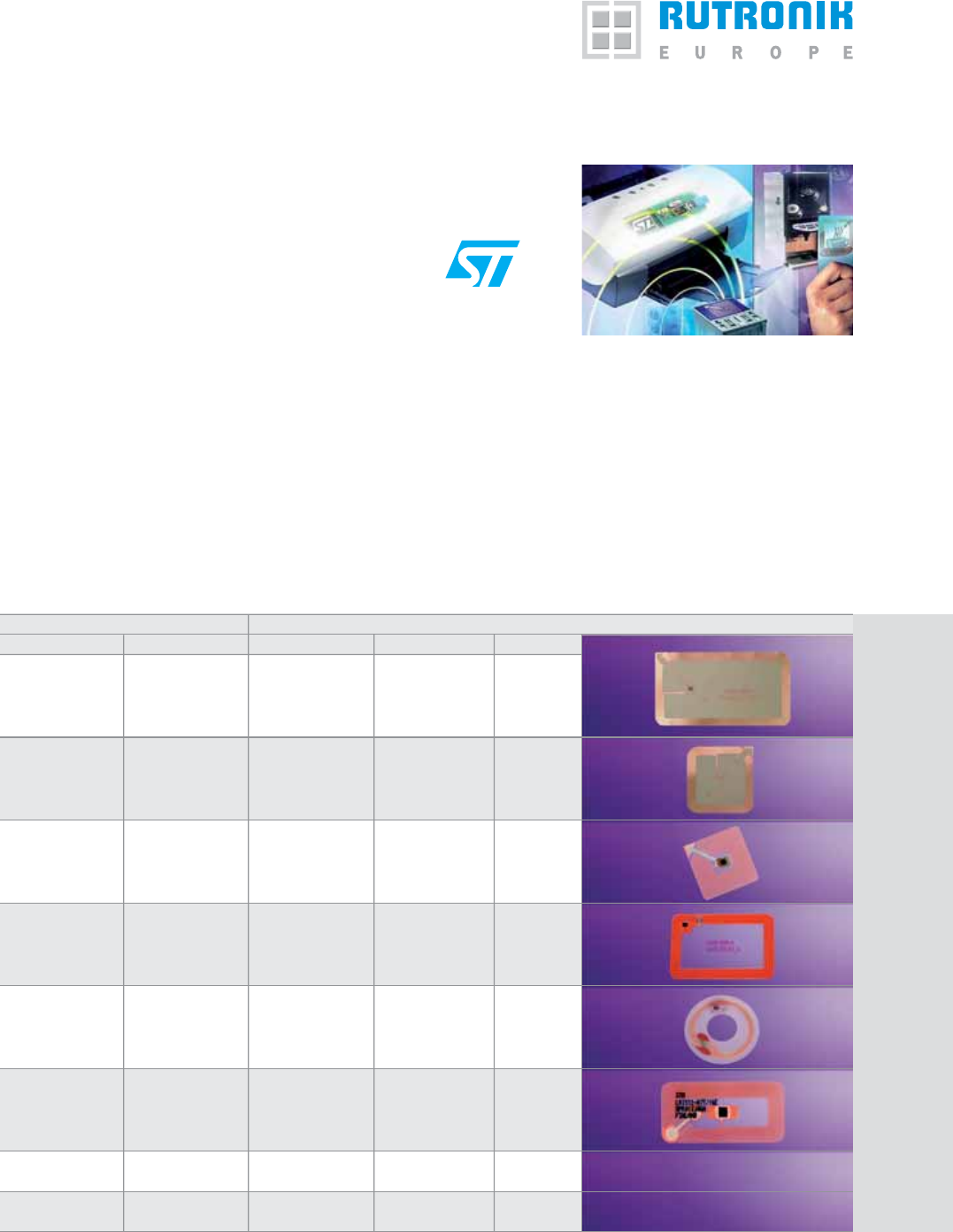

Product Working distance Size Package type Codification

LR164 0 – 100 cm 45 x 75 mm Copper antenna A1

LRI2K

SRIX4K 0 – 20 cm 38 x 38 mm Copper antenna A3

SRIX512

SRI76 0 – 20 cm 15 x 15 mm Copper antenna A4

SRIX4k

SRIX512

SRI76 0 – 20 cm 42 x 65 mm Copper antenna A5

SRIX4k

SRIX512

LRI512 0 – 100 cm ø 35 mm Copper antenna A6

LRI64

LRI2K

LRI64 0 – 100 cm 20 x 40 mm Copper antenna A7

LRI2K

LRI512 0 – 100 cm 28 x 28 mm Golden Copper C40

LRI64 Module

XRA00 1 – 10 m Wafer

WRAG2

Passive RFID Transponder ICs and Inlays

13,56 MHz (HF, ISO 14443b, ISO 15693) and 900 MHz (UHF, EPCglobal) standard transponders

SR = Short Range (ISO 14443), LR = Long Range (ISO 15693), XR = eXtended Range (ePCglobal) 900 MHz band

■ Single 5 V ±500 mV

Supply Voltage

■ SO16N package

■ I

C Communication

– Two Wire I

C Serial Interface

– Supports 400 kHz Protocol

– 3 Chip Enable Pins

– Up to 8 CR14 Connected

on the Same Bus

CR14/CRIX14 – Low Cost ISO14443 type-B Contactless Coupler Chip

with Anti-Collision and CRC Management

■ Contactless Communication

– ISO14443 type-B protocol

– 13.56 MHz Carrier Frequency

using an External Oscillator

– 106 Kbit/s Data Rate

– 36 Byte Input/Output Frame Register

– Supports Frame Answer with/

without SOF/EOF

– CRC Generation and Check

– Autom. ST Anti-Collision Exchange

DEMOKITCRX14

This DEMOKIT is an easy to use hard-

ware and software bundle to test diffe-

rent reader-chips and different tags.

The kit contains all datasheets, applicati-

on notes, two test boards with integra-

ted antennas and a big choice of inlays

with different mechanical-sizes and diffe-

rent memory-sizes. Use the contained

software to program the inlays by your

own and test the range of functionality.
